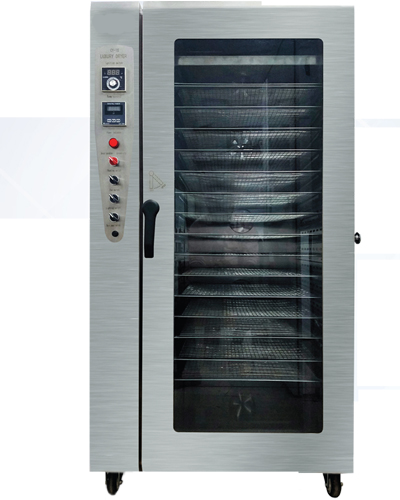

Stainless Steel Electric Tray Dryer
Grainex Stainless Steel Tray dryers are ideal for Food Processing Units, Spice Processing Units, Ayurvedic Medicine Manufacturers, Dehydrated Food Manufacturers,Health Mix Manufactures, Canteens, Restaurants # Can be Used for Drying Various Fruit & Vegetables, Coconut, Spices, Herbs, Sausages, Fish, Meat Products etc.
Features
- Timer and Temperature Contorller
- Full Body SS 304 and Trays
- High Quality Tempered Door Glass for Quick Inspection & Real Time Observation
- Hot Air Curculation for Uniform Heating
- Adjustable Moisture Vents to Suit DIfferent Product Requirements
- Heat Resistant Silicon Rubber to Prevent Heat Loss
- Finned Heating Tubes for Uniform Drying & Better Penetration of Heat
- Frosted Anti-Scaling Handle
- Wheels at Bottom for Convenient Movement of Dryer
- Compact Size & Low Noise
Technical Specifications:
- Supply Voltage: 230
- Size of Tray: 500 x 600mm
- Overall Size: 800 x 760 x 1130mm
- Material of Costruction: SS304
| Model No. | No. of Trays | Size of Tray | Heater Load | Material Capacity | |||
|---|---|---|---|---|---|---|---|
| Chilli | Coriander | Turmeric | Coconut | ||||
| Grainex-STD-08 | 8 Nos | 600 x 500mm | 3000 Watts | 10kg | 24kg | 32kg | 120 Nos |
| Grainex-STD-16 | 16 Nos | 600 x 500mm | 4000 Watts | 20kg | 48kg | 64kg | 240 Nos |
| Grainex-STD-32 | 32 Nos | 600 x 500mm | 6000 Watts | 40kg | 96kg | 128kg | 480 Nos |
Vegetable Washing and Peeling Machine
Vegetable Washing and Peeling Machine is equipped with soft and hard bristled rollers which helps to remove dirt and soil and peels the skin under water spray. This machine uses less water and enery with maximum output. Potato, Ginger, Onion, Sweet Potato, Carrot, Lotus Stem, beetroot etc. can be cleaned. This machine is suitable for pickle manufactures, large kitchens, bakery and vegetable processing units.
| Model | Motor Capacity | Production Output |
|---|---|---|
| Grainex-WP-600 | 1HP/ 1 Phase | 130-230 kg/hr |
| Grainex-WP-800 | 1HP/ 1 Phase | 180-300 kg/hr |
| Grainex-WP-1000 | 2HP/ 3 Phase | 360-500 kg/hr |
| Grainex-WP-1500 | 2HP/ 3 Phase | 240-400 kg/hr |
Multifunctional Vegetable Cutting Machine
Multi Functional Vegetable Cutting Machine is a highly versatile machine, capable of cutting root vegetables, long vegetables and leaves. Root Vegetable Side can cut vegetables into cubes, julian or slices by changing blades. Vegetable like Onion, Potato, Carrot, Ginger, Cabbage Capsicum, Pumkin can be processed in this section. The other side of the machine is capable of cutting long vegetables and leafy vegetable in various length and thickness. Variable Frequency Drive is provided for cutting blade as well as conveyor for adjusting the cutting length and thickness easily. Coriander leaves, celery, chilli, beans, bitter gourd and all types of long vegetable can be processed in this section.
| Model | Motor Capacity | Production/ Hr |
|---|---|---|
| AM-VMF-300 | 2.2kW | 300-500 Kg |
Cutting Blade Options
Cubing: 20x20x15mm and 15x15x15mm
Julian: 3mm and 6mm
Slice: 3mm and 6mm
Vegetable Slicing and Cutting Machine
Vegetable cutting and slicing machine slices vegetable in required thickness and then conveyed to chopping section. By changing various blades, it can cut all types of vegetables and fruits in to slices, cubes, diamond, strips, and waves etc. We can also process leafy vegetables with this machine. This machine is specially designed for pickle manufacturing industry and vegetable/ fruit processing units.
| Model | Power (HP) | Capacity |
|---|---|---|
| Grainex-VSC-2I | 1HP | 130-600 kg/hr |
| Grainex-VSC-3I | 2HP | 200-1000 kg/hr |
Bowl Chopper
Bowl Chopper can process various vegetables to be chopped quickly and easily. Ginger, Green Chilli, Cabbage, Carrot, Onion, Potato cab be processing in this machine. This machine is suitable for hotels, catering units, bakery, and for bulk cooking needs
| Grainex-BC-10 | 2HP | 10 Litre |
|---|---|---|
| Grainex-VSC-20 | 3HP | 20 litre |
Fruit Mill
Fruit Mill is used to crush fruits and vegetables for getting better juice extraction when squeezed in the fruit press. This is also used for grinding chili, onion etc to form paste.
| Model | Motor Capacity | Output |
|---|---|---|
| Grainex-FM-150 | 3.0 HP | 200-300 Kg/Hr |
| Grainex-FM-300 | 5.0 HP | 400-500 Kg/Hr |
Fruit Pulper
Fruit pulper is designed to meet extraction of pulp from fruits and other pulpy items. This machine can also be used for pepper husking and spices washing.
| Model | Motor Capacity | Output |
|---|---|---|
| Grainex-FM-150 | 3.0 HP | 200-300 Kg/Hr |
| Grainex-FM-300 | 5.0 HP | 400-500 Kg/Hr |
Potato Peeler
Potato Peeler peel potatos and other hard vegetables. The machine is widely used in restaurants, canteens and vegtable shops. This machine also peel sweet potato, ginger, carrot, beetroot etx.
| Model | Motor Capacity | Batch Capacity |
|---|---|---|
| Grainex-PP-10 | 0.5 HP | 10 KG |
| Grainex-PP-20 | 1.0 HP | 20 KG |
Vegetable Cutter
This machine is ideal for slicing, dicing, sheading and grating of vegetable and fruits. Changeable blades are provided for different applications.
| Model | Motor Capacity | Batch Capacity |
|---|---|---|
| Grainex-VC-200 | 0.5 HP | 200 KG/Hr |
