Grainex 12 Series Pulverisers for Rice and Wheat (Single/ Double Stage)
Grainex 512 Single Stage Mill is suitable for rice, wheat and all kinds of millet and grains. This machine is recommended for flour mills, small rice powder units, ayurvedic units and health mix producers.
| Material | Recommended Model | Chamber Size in Inches | Power (HP) | Output Capacity |
|---|---|---|---|---|
| Rice Wet | Grainex 512/ Grainex 612 | 5.0" x 12" / 6.0" x 12" | 7.5–10 HP | 300/ 450 Kg/Hr |
| Rice Dry | Grainex 512/ Grainex 612 | 5.0" x 12" / 6.0" x 12" | 7.5–10 HP | 150/ 250 Kg/Hr |
| Wheat | Grainex 512/ Grainex 612 | 5.0" x 12" / 6.0" x 12" | 7.5–10 HP | 100/ 150 Kg/Hr |
| Chilli | Grainex 514/ Grainex 614 | 5.0" x 14" / 6.0" x 14" | 10–15 HP | 35/ 50 Kg/Hr |
| Coriander | Grainex 514/ Grainex 614 | 5.0" x 14" / 6.0" x 14" | 10–15 HP | 30/ 40 Kg/Hr |
| Turmeric | Grainex 514/ Grainex 614 | 5.0" x 14" / 6.0" x 14" | 10–15 HP | 40/ 70 Kg/Hr |
Grainex 14 Series Double Stage Mill for Chilli, Coriander and Spices.
Grainex 614 Double Stage Pulverisers can efficiently grind chilli, coriander, turmeric and all spices easily with extra wide chamber. Oily, moist and fibrous materials can be easily processed in our machines. Water circulation is provided to keep the chamber cool to retain the natural aroma and flavour. This machine is recommended for flour mills, small rice powder units, small curry powder units, ayurvedic units and health mix producers. Motor capacity varies from 7.5HP to 20 HP depending on confgration.
| Material | Recommended Model | Chamber Size in Inches | Power (HP) | Output Capacity |
|---|---|---|---|---|
| Rice Wet | Grainex 512/ Grainex 612 | 5.0" x 12" / 6.0" x 12" | 7.5–10 HP | 300/ 450 Kg/Hr |
| Rice Dry | Grainex 512/ Grainex 612 | 5.0" x 12" / 6.0" x 12" | 7.5–10 HP | 150/ 250 Kg/Hr |
| Wheat | Grainex 512/ Grainex 612 | 5.0" x 12" / 6.0" x 12" | 7.5–10 HP | 100/ 150 Kg/Hr |
| Chilli | Grainex 514/ Grainex 614 | 5.0" x 14" / 6.0" x 14" | 10–15 HP | 35/ 50 Kg/Hr |
| Coriander | Grainex 514/ Grainex 614 | 5.0" x 14" / 6.0" x 14" | 10–15 HP | 30/ 40 Kg/Hr |
| Turmeric | Grainex 514/ Grainex 614 | 5.0" x 14" / 6.0" x 14" | 10–15 HP | 40/ 70 Kg/Hr |
Grainex Bimill Double Head Pulveriser
Grainex Bimill consist two pulverisers assembled on a single frame and motor. This machine is compact in size and suitable for flour mill units having space constraints. Can be customised with double stage or single stage pulverisers as per customer requirements. V Belt can be interchanged easily with the help of cam. This machine is suitable for double mill flour mills and food processing units where diffrenet materials needed to be grinded.
| Material | Recommended Model | Chamber Size in Inches | Power (HP) | Output Capacity |
|---|---|---|---|---|
| Rice Wet | Grainex 512/ Grainex 612 | 5.0" x 12" / 6.0" x 12" | 7.5–10 HP | 300/ 450 Kg/Hr |
| Rice Dry | Grainex 512/ Grainex 612 | 5.0" x 12" / 6.0" x 12" | 7.5–10 HP | 150/ 250 Kg/Hr |
| Wheat | Grainex 512/ Grainex 612 | 5.0" x 12" / 6.0" x 12" | 7.5–10 HP | 100/ 150 Kg/Hr |
| Chilli | Grainex 514/ Grainex 614 | 5.0" x 14" / 6.0" x 14" | 10–15 HP | 35/ 50 Kg/Hr |
| Coriander | Grainex 514/ Grainex 614 | 5.0" x 14" / 6.0" x 14" | 10–15 HP | 30/ 40 Kg/Hr |
| Turmeric | Grainex 514/ Grainex 614 | 5.0" x 14" / 6.0" x 14" | 10–15 HP | 40/ 70 Kg/Hr |
Electric Flour Mill Roaster
This machine is an alternative LPG Uruli Roaster with minimum production cost. Roasting of Rice Flour, pulses, rava, grains, coffee beans and concentrating of liquids can be performed with this machine. Automatic Temperature controller is provided for precise roasting. Compact desing and fully stainless steel construction makes it suitable for flour mills and small production units.
Features
- Only 20% energy cost compared to LPG Roaster
- Fully Stainless Steel Construction for hygenic operation
- Automatic Temperature controller for different application
- Compact Design, Less Manpower Cost
- Heating of Surrounding is fully avoid, hence less fatique for operator
| Model | Heater Load | Motor Power | Vessel Volume | Batch Capacity |
|---|---|---|---|---|
| Grainex - ER-15 | 3.0 KW | 0.25 HP | 45 Litre | 15 KG |
| Grainex - ER-25 | 4.5 KW | 0.5 HP | 75 Litre | 25 KG |
| Grainex - ER-60 | 9.0 KW | 1.0 HP | 180 Litre | 60 KG |
| Grainex - ER-100 | 14.0 KW | 1.5 HP | 300 Litre | 100 KG |
Stainless Steel Electric Tray Dryer
Grainex Stainless Steel Tray dryers are ideal for Food Processing Units, Spice Processing Units, Ayurvedic Medicine Manufacturers, Dehydrated Food Manufacturers,Health Mix Manufactures, Canteens, Restaurants # Can be Used for Drying Various Fruit & Vegetables, Coconut, Spices, Herbs, Sausages, Fish, Meat Products etc.
Features
- Timer and Temperature Contorller
- Full Body SS 304 and Trays
- High Quality Tempered Door Glass for Quick Inspection & Real Time Observation
- Hot Air Curculation for Uniform Heating
- Adjustable Moisture Vents to Suit DIfferent Product Requirements
- Heat Resistant Silicon Rubber to Prevent Heat Loss
- Finned Heating Tubes for Uniform Drying & Better Penetration of Heat
- Frosted Anti-Scaling Handle
- Wheels at Bottom for Convenient Movement of Dryer
- Compact Size & Low Noise
Technical Specifications:
- Supply Voltage: 230
- Size of Tray: 500 x 600mm
- Overall Size: 800 x 760 x 1130mm
- Material of Costruction: SS304
| Model No. | No. of Trays | Size of Tray | Heater Load | Material Capacity | |||
|---|---|---|---|---|---|---|---|
| Chilli | Coriander | Turmeric | Coconut | ||||
| Grainex -STD-08 | 8 Nos | 600 x 500mm | 3000 Watts | 10kg | 24kg | 32kg | 120 Nos |
| Grainex -STD-16 | 16 Nos | 600 x 500mm | 4000 Watts | 20kg | 48kg | 64kg | 240 Nos |
| Grainex -STD-32 | 32 Nos | 600 x 500mm | 6000 Watts | 40kg | 96kg | 128kg | 480 Nos |
Vibro Sifter
Grainex Rice stemers are the easy and economical solution for steaming rice for puttu podi. Steamer are available in electrical and LPG models according to customer requrements. High Density Insulated panels are used to give maximum fuel efficiency. Our steamers are also used to cook steamed snacks like Idli, Vattayappam, Idiappam, Ada and Vegetables like Potato, Carrot, Beans, Mushroom, Sweet Potato Etc.
| Model | Motor Capacity | Diameter of Screen |
|---|---|---|
| Grainex -VS-24 | 0.5 HP | 24 Inch |
| Grainex -VS-30 | 0.5HP | 30 Inch |
| Grainex -VS-36 | 1.0 HP | 36 Inch |
| Grainex -VS-48 | 2.0 HP | 48 Inch |
| Grainex -VS-60 | 3.0 HP | 60 Inch |
| Grainex -VS-72 | 3.0 HP | 72 Inch |
Vegetable Washing and Peeling Machine
Vegetable Washing and Peeling Machine is equipped with soft and hard bristled rollers which helps to remove dirt and soil and peels the skin under water spray. This machine uses less water and enery with maximum output. Potato, Ginger, Onion, Sweet Potato, Carrot, Lotus Stem, beetroot etc. can be cleaned. This machine is suitable for pickle manufactures, large kitchens, bakery and vegetable processing units.
| Model | Motor Capacity | Production Output |
|---|---|---|
| Grainex -WP-600 | 1HP/ 1 Phase | 130-230 kg/hr |
| Grainex -WP-800 | 1HP/ 1 Phase | 180-300 kg/hr |
| Grainex -WP-1000 | 2HP/ 3 Phase | 360-500 kg/hr |
| Grainex -WP-1500 | 2HP/ 3 Phase | 240-400 kg/hr |
Multifunctional Vegetable Cutting Machine
Multi Functional Vegetable Cutting Machine is a highly versatile machine, capable of cutting root vegetables, long vegetables and leaves. Root Vegetable Side can cut vegetables into cubes, julian or slices by changing blades. Vegetable like Onion, Potato, Carrot, Ginger, Cabbage Capsicum, Pumkin can be processed in this section. The other side of the machine is capable of cutting long vegetables and leafy vegetable in various length and thickness. Variable Frequency Drive is provided for cutting blade as well as conveyor for adjusting the cutting length and thickness easily. Coriander leaves, celery, chilli, beans, bitter gourd and all types of long vegetable can be processed in this section.
| Model | Motor Capacity | Production/ Hr |
|---|---|---|
| AM-VMF-300 | 2.2kW | 300-500 Kg |
Cutting Blade Options
Cubing: 20x20x15mm and 15x15x15mm
Julian: 3mm and 6mm
Slice: 3mm and 6mm
Vegetable Slicing and Cutting Machine
Vegetable cutting and slicing machine slices vegetable in required thickness and then conveyed to chopping section. By changing various blades, it can cut all types of vegetables and fruits in to slices, cubes, diamond, strips, and waves etc. We can also process leafy vegetables with this machine. This machine is specially designed for pickle manufacturing industry and vegetable/ fruit processing units.
| Model | Power (HP) | Capacity |
|---|---|---|
| Grainex -VSC-2I | 1HP | 130-600 kg/hr |
| Grainex -VSC-3I | 2HP | 200-1000 kg/hr |
Bowl Chopper
Bowl Chopper can process various vegetables to be chopped quickly and easily. Ginger, Green Chilli, Cabbage, Carrot, Onion, Potato cab be processing in this machine. This machine is suitable for hotels, catering units, bakery, and for bulk cooking needs
| Alpha-BC-10 | 2HP | 10 Litre |
|---|---|---|
| Grainex -VSC-20 | 3HP | 20 litre |
Semi Solid Dozer with U-Blender
Grainex Semi Solid Dozer with U blender is a specially designed machine for filling any type of semi solid material like pickle, Juices with Solid Particles, cake batter etc. U Type blender is provided to maintain the homogeneity of materials to be filled. Chunk size of up to 20mm can be filled in this machine. This machine is designed according to CIP concept for easy cleaning of internal parts.
| Semi Solid Dozer wit U Blender | |
|---|---|
| Material of construction | : SS304 |
| Blender Capacity | : 60 Litre |
| Compressor Required | : 2 HP, 210 Litre |
| Filling Range | : 50 Gram to 1000 Gram |
| Working Pressure | : 6 Bar |
| Production Output | : 900 to 1200 Dozes |

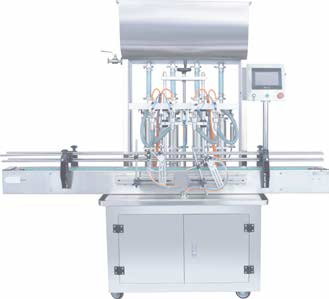

Automatic Paste/ Liquid Filling Line
Grainex Machineries offers wide range of paste/ liquid filling machines which are widely used for food products, ayurvedic medicines and cosmetic/chemical products for filling paste, liquid and semi solids. We can fill viscous as well as non-viscous materials in this machine. 4 Head/ 6 Head automatic lines and Two Head/ Single Head Semi Automatic machines can be provided as per customer requirements. Hopper with heater and stirrer can be provided according to the material. Capping and Labelling can also be integrated with automatic lines. List of Products that can be filled: Food: Sauce, Honey, Fruit Juice, Creams, Mayonnaise, Peanut Butter, Ghee, Cake Batter, Chocolate Syrup, Curry Paste, Dosa Batter, Pickle etc. Ayurveda: Lehyam, Kritham, Arishtam, Oil etc Chemical/ Cosmetic: Hand Wash, Shampoo, Gel, Cream, Paint, Lubircant Oil etc”
Features
- Fully SS304 Construction
- Touch Screen HMI for easy operation
- Trilog Coupling for quick dismantling and cleaing
- Weight can be adjusted for different volume
- Automatic/ Semi automatic Modes
- Hopper with Heater and Stirrer as optional
- Drip Arrester provided for non viscous materials.
- Cleaning mode and fast change over of material
- Turn Table, Capping and Labelling Machines can be intergrated in Automatic Lines (4 head / Six Head)
| Specification | Details |
|---|---|
| Material of Construction | SS304 |
| Blender Capacity | 60 Litre |
| Compressor Required | 2 HP, 210 Litre |
| Filling Range | 50 Gram to 1000 Gram |
| Working Pressure | 6 Bar |
| Production Output | 900 to 1200 Dozes |
Fruit Mill
Fruit Mill is used to crush fruits and vegetables for getting better juice extraction when squeezed in the fruit press. This is also used for grinding chili, onion etc to form paste.
| Model | Motor Capacity | Output |
|---|---|---|
| Grainex -FM-150 | 3.0 HP | 200-300 Kg/Hr |
| Grainex -FM-300 | 5.0 HP | 400-500 Kg/Hr |
Fruit Pulper
Fruit pulper is designed to meet extraction of pulp from fruits and other pulpy items. This machine can also be used for pepper husking and spices washing.
| Model | Motor Capacity | Output |
|---|---|---|
| Grainex -FM-150 | 3.0 HP | 200-300 Kg/Hr |
| Grainex -FM-300 | 5.0 HP | 400-500 Kg/Hr |
Cooking Kettle
Grainex Cooking Kettles are double jacketed with high quality insulation. This gives 40% energy saving compared to conventional cooking pots.Kettles are available with stirrer for cosistant preparation. All models have inbuit tilting system for material dischrge.
| Model | Vessel Volume | Motor Power |
|---|---|---|
| AM-CK-100 | 100 Litre | 1.5 HP |
| AM-CK-200 | 200 Litre | 2.0 HP |
| AM-CK-300 | 300 Litre | 3.0 HP |

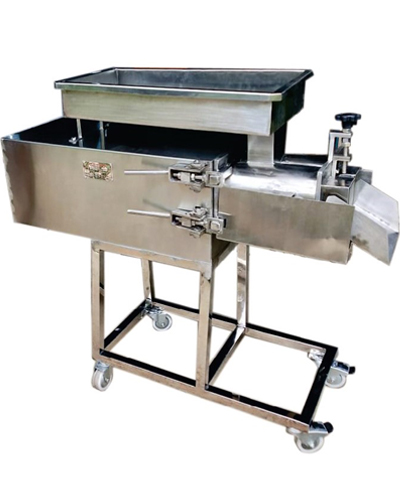

Coconut Milk Extractor
Coconut Milk Extractor is a compact machine ideal for catering units and restaurants. This machine is made of Stainless Steel and detachable filter is provided for easy cleaning. This machine is portable, thus suitable for outdoor works. 50% more output is achievable compared to manual process.
| Model | Motor Capacity | Output |
|---|---|---|
| Grainex -FBC-600 | 1 HP | 300-600 kg/hr |
| Grainex -FBC-1000 | 2 HP | 500-1000 kg/hr |
| Grainex -FBC-1500 | 3 HP | 1000-1500 kg/hr |
Tilting Wet Grinder
Tilting Wet Grinder is ideal for homogenious grinding of Idly/Dosa Batter, chutney and gravy.
| Model | Motor Capacity | Output |
|---|---|---|
| Grainex -RC-50 | 0.5 HP | 50 kg/hr |
| Grainex -RC-100 | 1.0 HP | 100 kg/hr |
| Grainex -RC-200 | 2.0 HP | 200 kg/hr |
Continuous Stone Wet Grinder
Continuous Stone Wet Grinder is used to grind peanut, dal, rice and all kinds of seeds and grains to produce homogenious paste or batter. Special stones are used to maintain material temerature to minimum while grinding. High production rate is achieveable compared to batch processing grinders.
| Model | Motor Capacity | Output |
|---|---|---|
| Grainex -RC-50 | 0.5 HP | 50 kg/hr |
| Grainex -RC-100 | 1.0 HP | 100 kg/hr |
| Grainex -RC-200 | 2.0 HP | 200 kg/hr |
